How Do AIO Coolers Work? Understanding the Technology Behind CPU Liquid Cooling Systems

When it comes to keeping your computer’s CPU at optimal temperatures, an All-In-One (AIO) cooler offers an efficient and user-friendly liquid cooling solution. These systems are designed to provide enhanced cooling performance compared to traditional air coolers, combining all the necessary components into a single, compact unit. But how exactly does an AIO cooler work? Let’s break it down.

What Is an AIO Cooler?

An AIO cooler is a self-contained liquid cooling system that efficiently manages a CPU’s heat. It’s called “all-in-one” because it integrates all the components required for liquid cooling into a single package, making it easier to install and maintain than custom liquid cooling loops. AIO coolers are popular among gamers, PC enthusiasts, and professionals who need reliable thermal management for high-performance CPUs.

Key Components of an AIO Cooler

1. Water Block and Pump
   • The water block is the part of the cooler that directly contacts the CPU. Typically made of copper or aluminum, it absorbs heat from the processor.
   • Inside the water block is a pump that circulates the coolant throughout the system.
2. Tubing
   • Flexible tubes connect the water block to the radiator, allowing the coolant to flow between these components. These tubes are designed to be leak-resistant and durable.
3. Radiator and Fans
   • The radiator is where the heat from the coolant is dissipated. It’s equipped with fins to increase surface area for better heat transfer.
   • Fans mounted on the radiator blow air across these fins, expelling heat into the surrounding environment.

How AIO Coolers Work

The operation of an AIO cooler involves a continuous cycle of heat absorption, coolant circulation, and heat dissipation:

1. Heat Absorption
   • The water block, installed on the CPU, absorbs heat generated during processing and transfers it to the liquid coolant within the block.
2. Coolant Circulation
   • The pump inside the water block pushes the heated coolant through the tubing to the radiator.
3. Heat Dissipation
   • The coolant releases the absorbed heat at the radiator. The attached fans blow air across the radiator’s fins, accelerating the heat transfer process.
4. Cooling Cycle
   • Once cooled, the liquid is sent back to the water block to repeat the cycle. This continuous loop keeps your CPU at safe operating temperatures.

Why Choose an AIO Cooler?

AIO coolers offer several advantages over traditional air cooling systems:

• Enhanced Cooling Performance: Liquid coolants can absorb and transfer heat more efficiently than air.
• Compact Design: Despite being a liquid cooling system, AIOs are space-efficient and easier to install than custom loops.
• Reduced Noise Levels: High-quality AIO systems often operate more quietly than bulky air coolers with multiple fans.
• Aesthetic Appeal: Many AIO coolers come with customizable RGB lighting and sleek designs that enhance the look of your build.

Is an AIO Cooler Right for You?

If you’re running a high-performance CPU or planning to overclock your system, an AIO cooler can be a game-changer. It provides superior cooling efficiency, helping to prevent thermal throttling and ensure optimal performance. However, AIO coolers are slightly more expensive than air coolers, so it’s important to weigh the benefits against your budget and needs.

Final Thoughts

All-in-one coolers are an excellent solution for users seeking efficient and convenient thermal management. By combining the essential components of liquid cooling into a single unit, AIOs provide a balance of performance, ease of use, and aesthetic appeal. Whether you’re a gamer pushing your system to its limits or a professional seeking a quieter, cooler workspace, an AIO cooler could be the perfect addition to your PC setup.

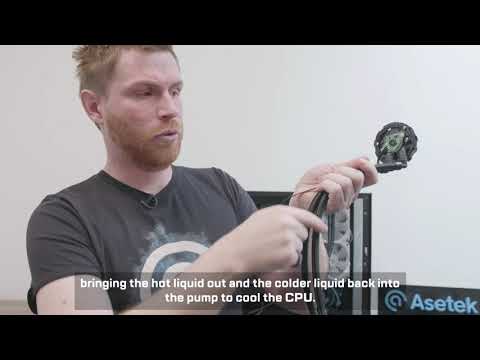

If you’d like a visual demonstration, this video by Asetek is great:
